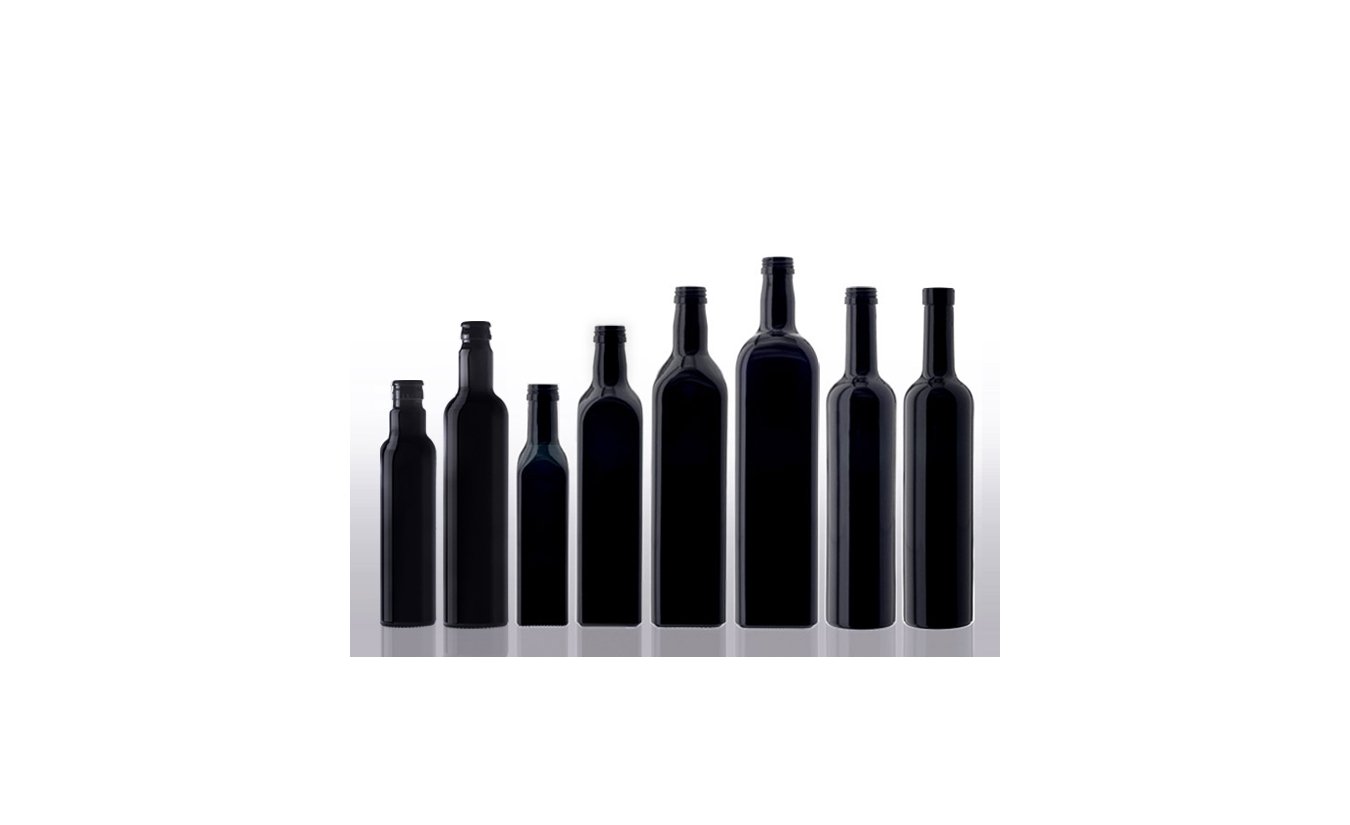

Miron violet glass oil bottles square model

Oil bottle 250 ml

Number: FL-OEL250
Height: 213,0 ± 2,0 mm
Diameter: 47,0 ± 1,5 mm
Weight: 250 gr
Shape: Square
Threadnorm: UNI 10155 31,5 * 24 STD
Material: Violet glass
Capacity to fill point: 250 ml
Capacity brimfull: 265,0 ± 8 ml
Label height: 138 mm
Label width: 33 mm

-------------------------------------------------------------

Oil bottle 500 ml

Number: FL-OEL500
Height: 260,0 ± 2,0 mm
Diameter: 58,0 ± 1,5 mm
Weight: 445 gr
Shape: Square
Threadnorm: UNI 10155 31,5 * 24 STD
Material: Violet glass
Capacity to fill point: 500 ml
Capacity brimfull: 515,0, ± 8 ml
Label height: 170 mm
Label width: 42 mm

-------------------------------------------------------------

Oil bottle 1000 ml

Number: FL-OEL1LT
Height: 320,0 ± 2,5 mm
Diameter: 73,5 ± 2,0 mm
Weight: 710 gr
Shape: Square
Threadnorm: UNI 10155 31,5 * 24 STD
Material: Violet glass
Capacity to fill point: 1000 ml
Capacity brimfull: 1025,0 ± 10 ml
Label height: 209 mm
Label width: 43 mm
