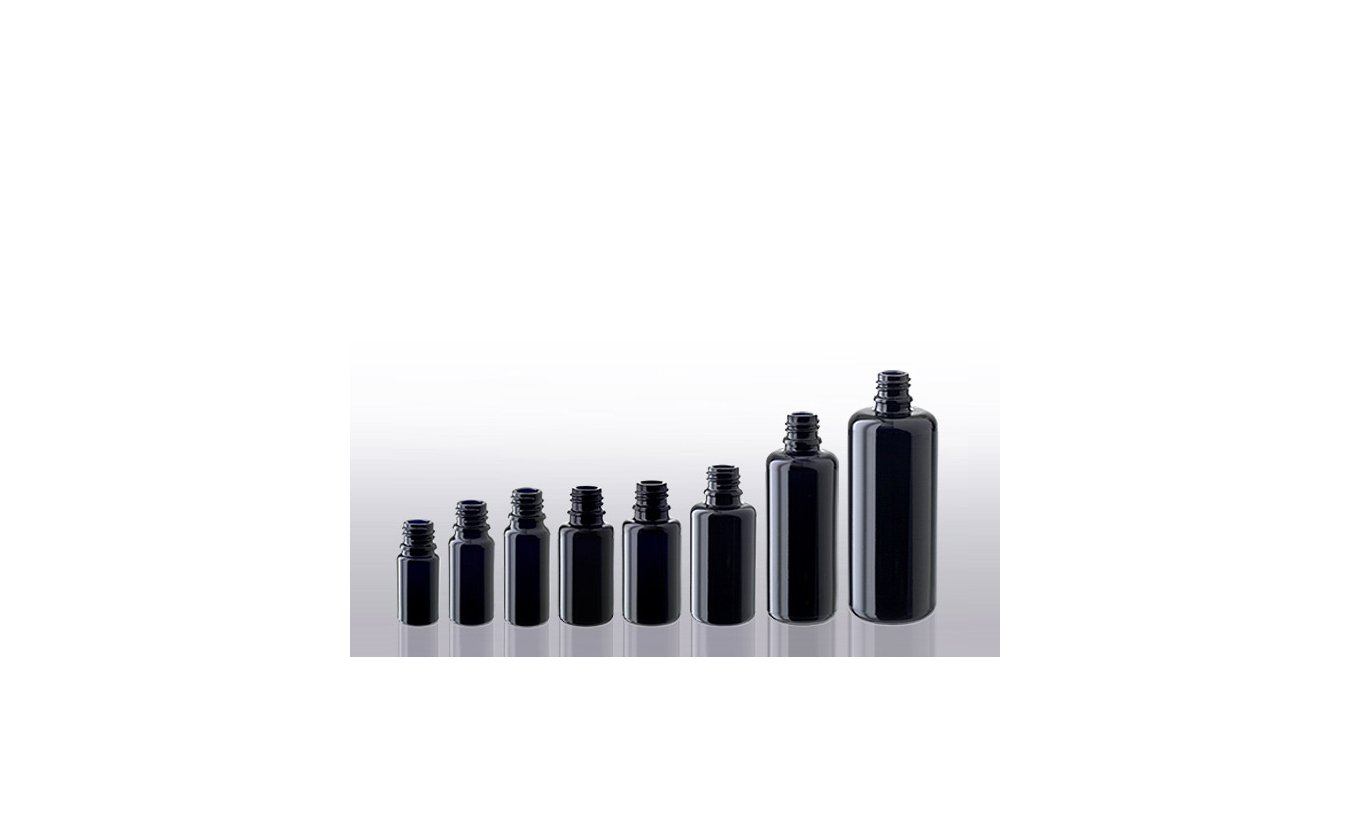

Miron violet glass bottles (DIN 18)

Bottle 5 ml

Number: FL-5
Height: 53,2 + 0,6 mm
Diameter: 22,5 +0,7/-0,4
Weight: 27 gr
Threadnorm: DIN 168 /GL 18
Material: Violet glass
Capacity to fill point: 5 ml
Capacity brimfull: 7,0 + 0,7 ml

-----------------------------------------------------------

Bottle 10 ml

Number: FL-10-63
Height: 63,8 + 0,7 mm
Diameter: 24,8 +0,7/-0,7
Weight: 29 gr
Threadnorm: DIN 168 /GL 18
Material: Violet glass
Capacity to fill point: 10 ml
Capacity brimfull: 12,5 + 1,0 ml

-----------------------------------------------------------

Bottle 10 ml

Number: FL-10-70
Height: 70,0 + 0,7 mm
Diameter: 23,5 +0,8/-0,4
Weight: 35 gr
Threadnorm: DIN 168 /GL 18
Material: Violet glass
Capacity to fill point: 10 ml
Capacity brimfull: 12,5 + 1, ml

-----------------------------------------------------------

Bottle 15 ml

Number: FL-15
Height: 70,5 + 0,7 mm
Diameter: 29 +1,0/-0,5
Weight: 46 gr
Threadnorm: DIN 168 /GL 18
Material: Violet glass
Capacity to fill point: 15 ml
Capacity brimfull: 19,0 + 1,5 ml

-----------------------------------------------------------

Bottle 20 ml

Number: FL-20
Height: 72,5 + 0,7 mm
Diameter: 30,5 +1,0/-0,5
Weight: 46 gr
Threadnorm: DIN 168 /GL 18
Material: Violet glass
Capacity to fill point: 20 ml
Capacity brimfull: 24,0 + 1,5 ml

-----------------------------------------------------------

Bottle 30 ml

Number: FL-30
Height: 79,4 + 0,7 mm
Diameter: 34,0 +1,0/-0,5
Weight: 57 gr
Threadnorm: DIN 168 /GL 18
Material: Violet glass
Capacity to fill point: 30 ml
Capacity brimfull: 34,0 + 1,5 ml

-----------------------------------------------------------

Bottle 50 ml

Number: FL-50
Height: 106,4 + 0,8 mm
Diameter: 37,0 +1,0/-0,5
Weight: 100 gr
Threadnorm: DIN 168 /GL 18
Material: Violet glass
Capacity to fill point: 50 ml
Capacity brimfull: 56,0  + 3,0 ml

-----------------------------------------------------------

Bottle 100 ml

Number: FL-100
Height: 125,5 + 0,9 mm
Diameter: 45 +1,1/-0,6
Weight: 135 gr
Threadnorm: DIN 168 /GL 18
Material: Violet glass
Capacity to fill point: 100 ml
Capacity brimfull: 114,4 + 3,2 ml
